RPP Containers

57 x 45 CenterFlow Hopper Bottoms

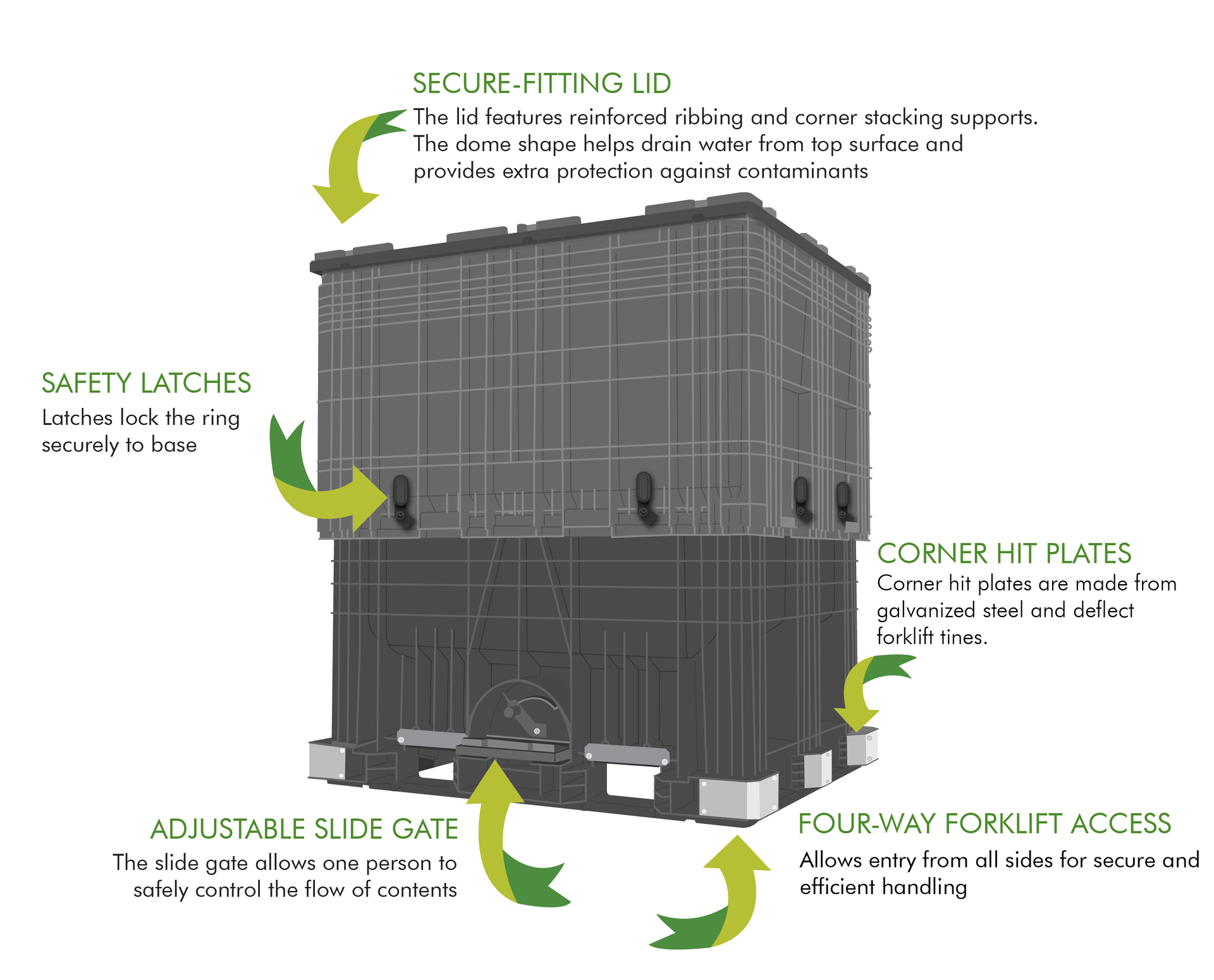

57" x 45" CenterFlow hopper bottom containers, with their smooth, funnel-shaped interior, are ideal for controlled dispensing of seed, grain, resins, powders, pellets, and other small components. The adjustable slide gate allows contents to be emptied in as little as 30 seconds, and the base has 4-way forklift access for secure and efficient handling. Available in four heights: 32", 41", 65", and 74" inches. Made from high-density polyethylene, these hopper bottom containers will provide years of reliable service under the harshest conditions. 100% recyclable. Container lid included. Black color.

Information Quick Links

57 x 45 CenterFlow Hopper Bottom Height Options

57x45x32 Seed Box

Features & Benefits

  • 1,000* lbs.-capacity
  • Holds 15.416 bushels** (US,Dry)

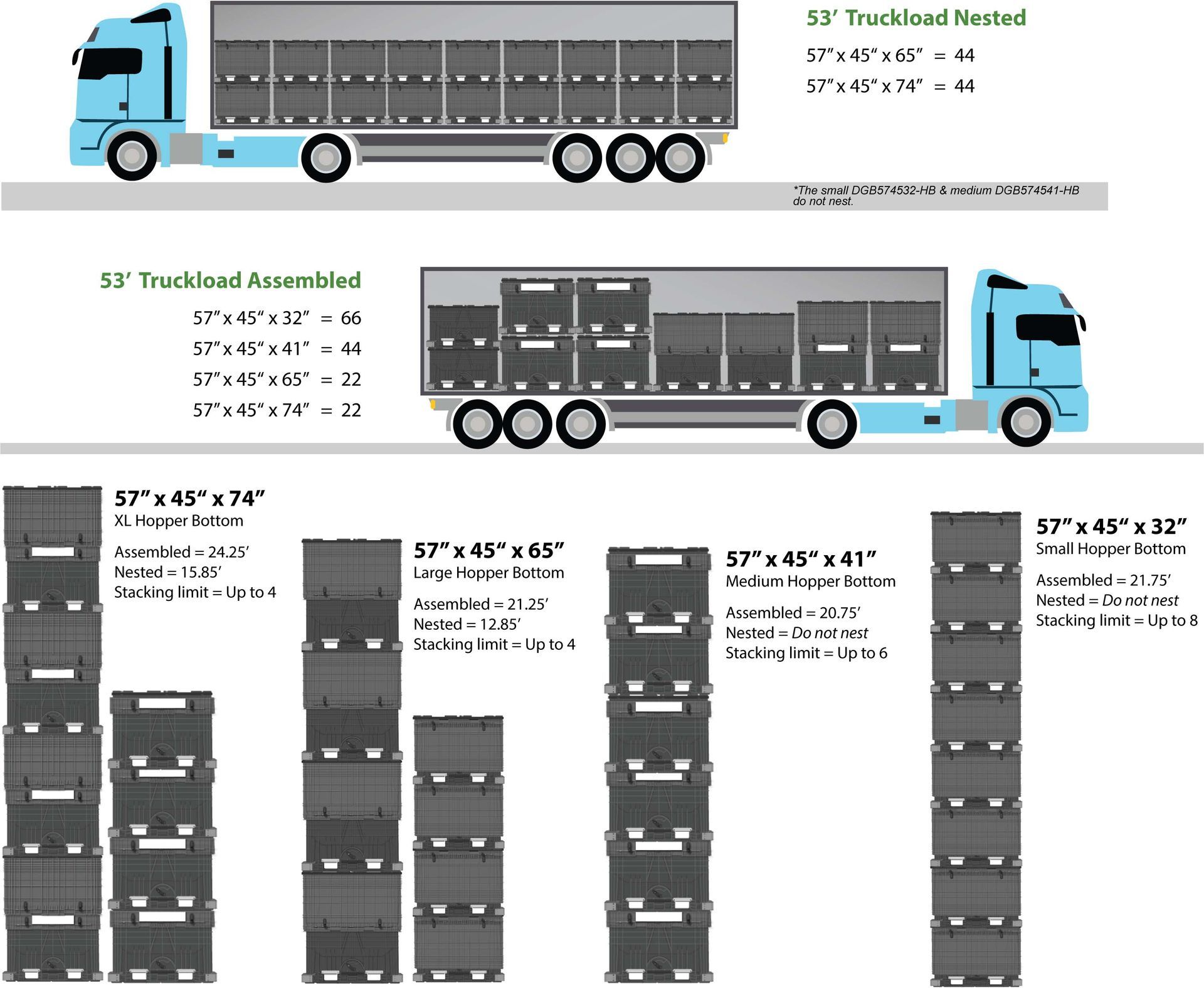

  • 66 hoppers fit in a 53' dry van trailer
  • 19.8 cu. ft. internal volume
  • 222 lbs. tare weight
  • Part # DGB574532-HB
  • Lid included

See All Product Photos

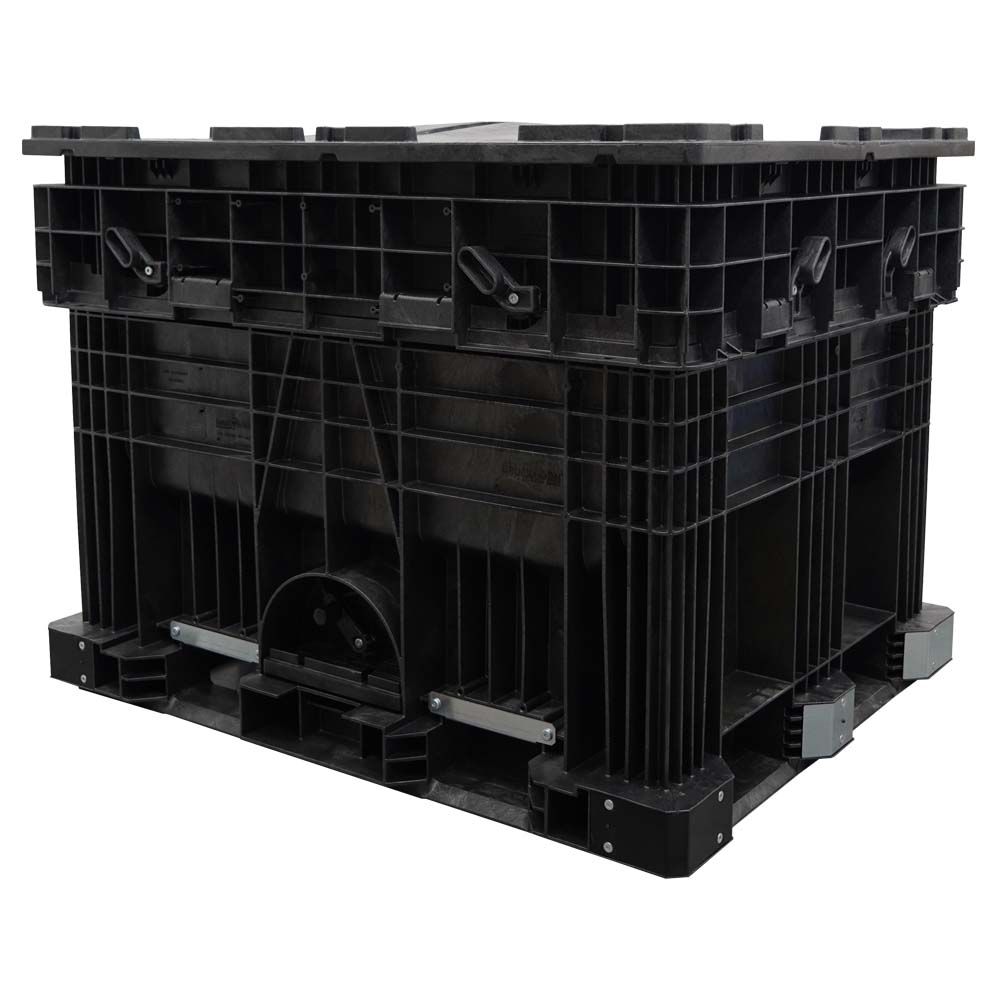

57x45x41 CenterFlow Seed Box

Features & Benefits

  • 1,500* lbs.-capacity
  • Holds 23.705 bushels** (US,Dry)
  • 44 hoppers fit in a 53' dry van trailer
  • 29.5 cu. ft. internal volume
  • 266 lbs. tare weight
  • Part # DGB574541-HB
  • Lid included

See All Product Photos

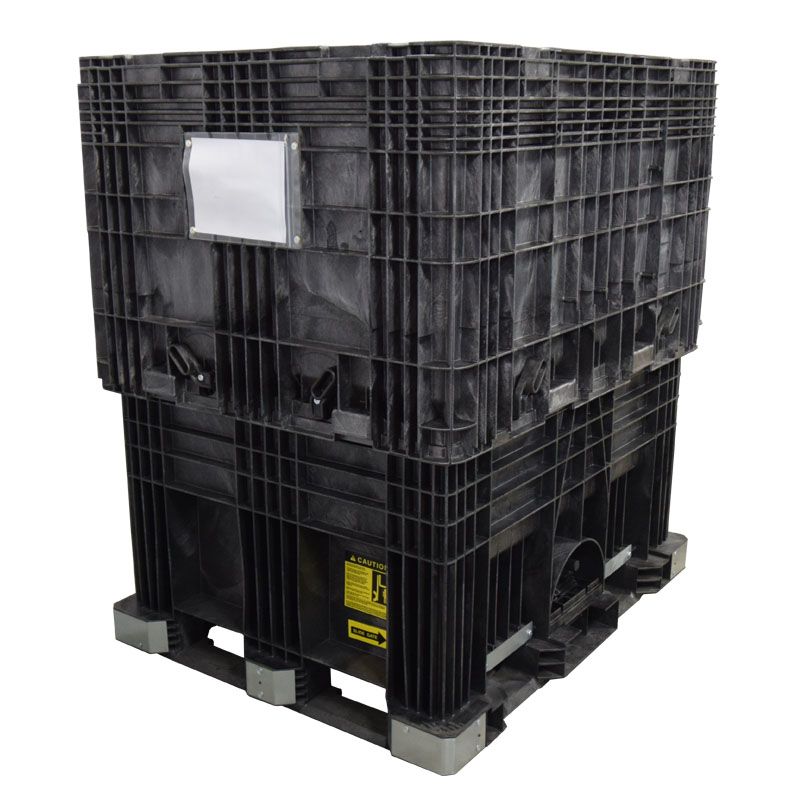

57x45x65 Seed Box

Features & Benefits

  • 2,800* lbs.-capacity
  • Holds 46.847 bushels** (US, Dry)
  • 22 hoppers fit in a 53' dry van trailer

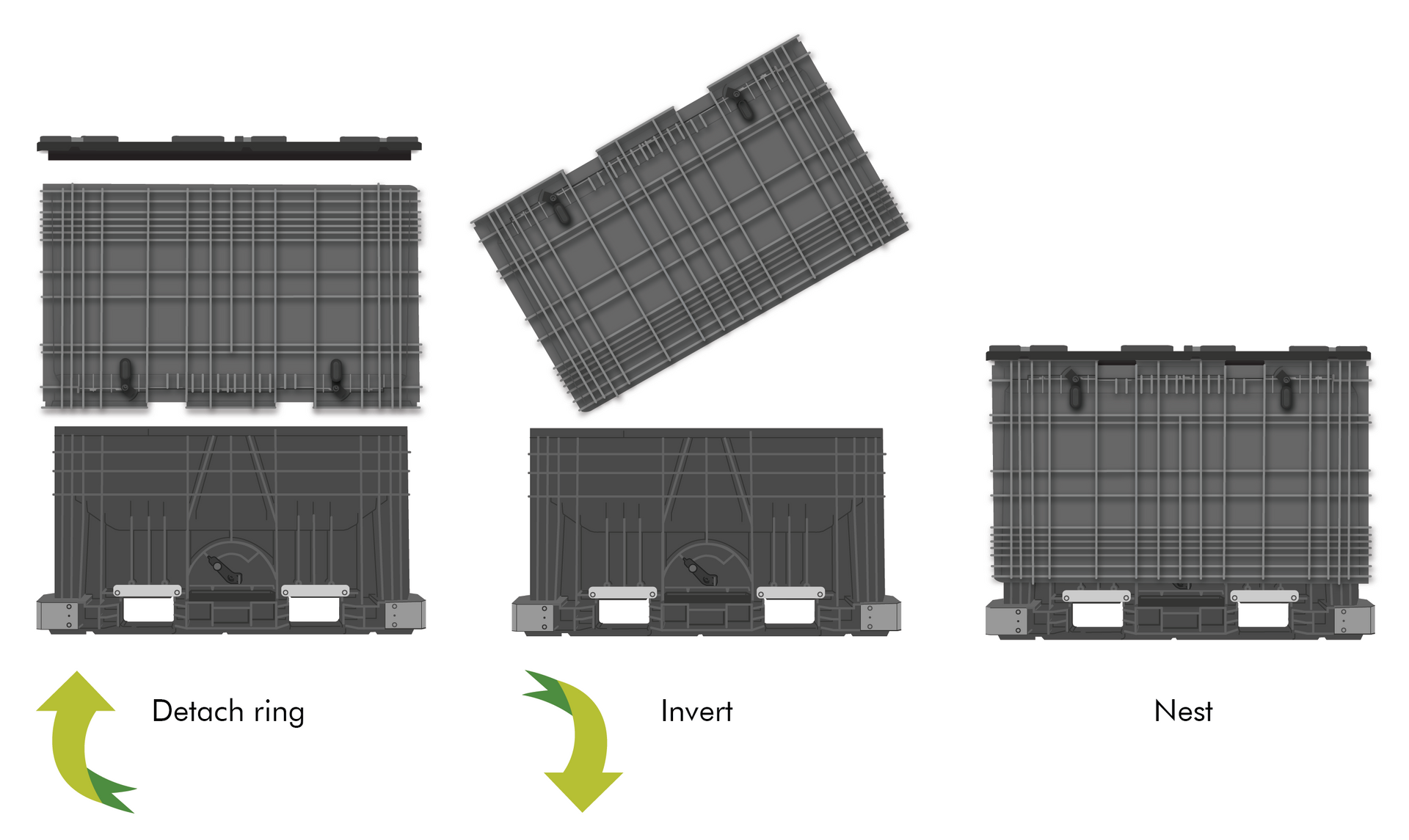

  • 44 nested hoppers fit in a 53' dry van trailer
  • 58.3 cu. ft. internal volume
  • 331 lbs. tare weight
  • Part # DGB574565-HB
  • Lid included

See All Product Photos

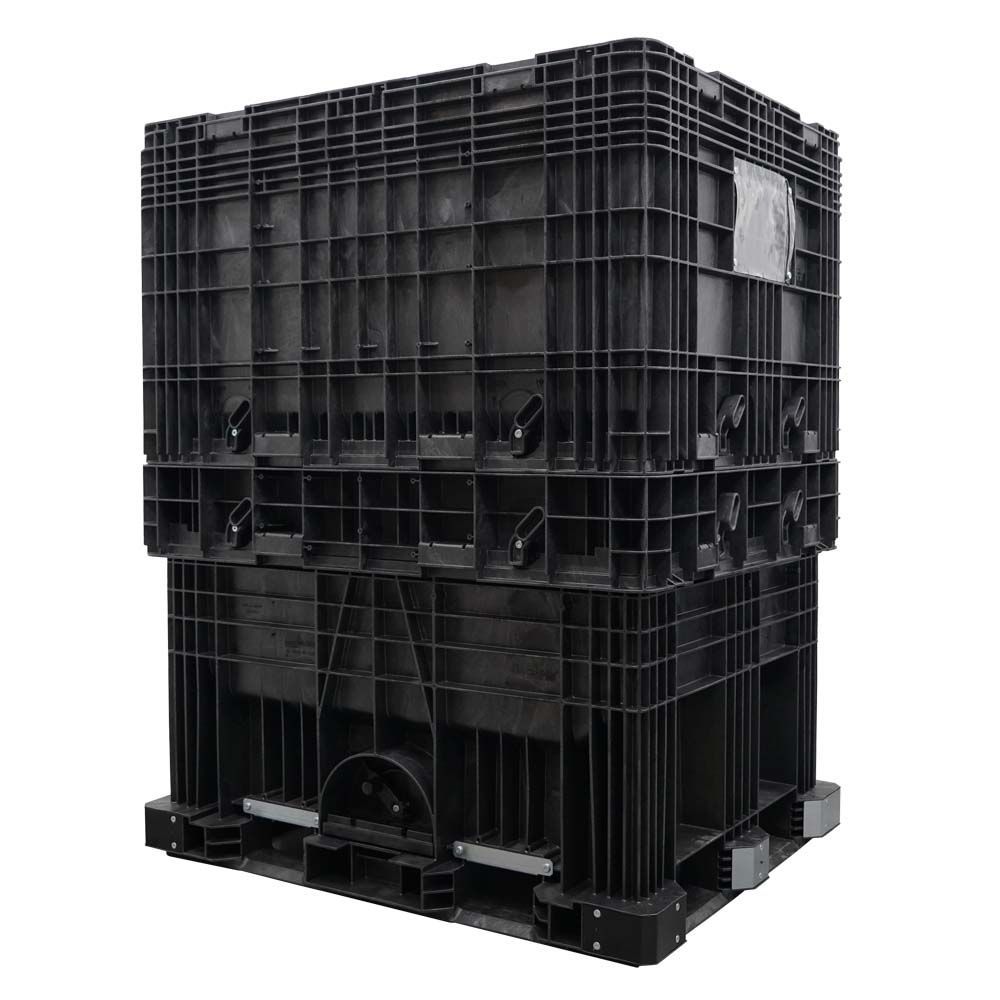

57x45x74 Seed box

Features & Benefits

  • 3,000* lbs.-capacity
  • Holds 54.642 bushels** (US,Dry)
  • 22 hoppers fit in a 53' dry van trailer
  • 44 nested hoppers fit in a 53' dry van trailer
  • 68 cu. ft. internal volume
  • 375 lbs. tare weight
  • Part # DGB574574-HB
  • Lid included

See All Product Photos

Specifications

DGB574532-HB DGB574541-HB DGB574565-HB DGB574574-HB
Exterior Height 32" 41" 65" 74"
Exterior Dimensions (L x W) 57"(L) 45"(W) 57"(L) 45"(W) 57"(L) 45"(W) 57"(L) 45"(W)
Interior Dimensions (L x W) 49.5"(L) 38"(W) 53.5"(L) 42"(W) 53.5"(L) 42"(W) 53.5"(L) 42"(W)
Funnel Opening 8.5" x 11" 8.5" x 11" 8.5" x 11" 8.5" x 11"
Nested Height N/A N/A 39.3" 47.5"
Tare Weight (lbs) 222 266 331 375
Weight Capacity (lbs) 1,000* 1,500* 2,800* 3,000*
Internal Volume (cu.ft.) 19.8 29.5 58.3 68
Bushels (US,Dry) 15.416 bushels ** 23.705 bushels** 46.847 bushels** 54.642 bushels**
53' Truck Open 66* 44* 22* 22*
53' Truck Nested 66* 44* 44* 44*
Return Ratio 1:01 1:01 1.6:1 1.6:1
Included Lid DGB574532-L DGB574565-L DGB574565-L DGB574565-L

*Capacity depends on application and use environment. It is based on equally distributed loads. Elevated temperatures or concentrated loads may affect capacity. Specifications are subject to change without notice. All dimensions are approximate.


*Count based on 53' Standard Dry Van Trailers.


**Bushels calculation is an estimate based on US Dry measurements. 1 cubic feet to bushels = 0.80356 bushels

Product Video

Q: What are the dimensions of the interior funnel opening?

A: 8.5" x 11"


Q: Do you sell replacement parts?

A: Yes, you must have the lid securely locked into the sleeve to stack.


Q: Do I need a lid to stack containers?

A: No, you do not need a lid to stack these collapsible bulk containers.


We also understand that sometimes applications demand something a little different than the standard collapsible bulk container. In those cases, we have container experts and design engineers available to help with whatever your material handling needs may be. See our custom container section for more information.



RPP Containers warrants its new products to be free from defects in materials and workmanship for a period of 1 year from the date of shipment. If, within this period, our bulk container is proven to be defective, we will either repair or replace the bulk container. See a full list of our terms and conditions.
